| NIVOSTOP® - SS2 / HYP, Level controller, all in HYPALON |
General Catalogue 520-02 |
NIVOSTOP SS2 HYP

|
|

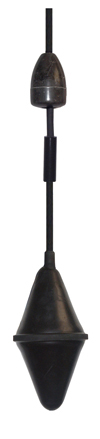

NIVOSTOP® - SS2 / HYP, Level controller, all in HYPALON
- Compatibility with basic, leak acid solutions and other aggressive chemicals - Restrictions: due to the cable made of HYPALON and additives - Adjustable ballast - Maximal pressure 5.5 bar - Maximal temperature 95°C |
These float level controllers are similar to any NIVOSTOP® SS2 type KW. The same kind of micro switch is built-in; the principle is the same: a fixed point allows the contact to switch. The real difference with the standard NIVOSTOP® is the material in use: all the wetted parts are in HYPALON. However, in comparison with the float, please consider a weak resistance of the cable due to the additives (necessary for the flexibility).
Maximal pressure: 5.5 bar Protection: IP 68 Cable: HYPALON, 3 x 1 mm2 For fluid specific weight: 0.80 ... 1.10 kg/L Fluid maximal Temperature: 95°C Float: PP with HYPALON coating Switching limits: 16 (6) A (16 A resistive or 6 A inductive charge) Switching power: 12, 24, 48 V AC / V DC Switch: Micro-switch, changeover contact Ballast: 250 g, in composite (check the chemical compatibility) Float weight: 300 g, without the cable Cable weight: 95 g / m Cable length: 5 or 10 m (other on request) cable diameter: Ř 7,3 mm
 |
 |
 |
 |
FACTORY MOUNTING ON REQUEST |
 |
 |
 |
 |
On request, we supply the float(s) fixed on a rigid stem with a housing including screw connectors for the wiring. The mounting on site may be easier with an optional flange.
|
 |
|
Level controller, all in HYPALON
NIVOSTOP® - SS2 / HYP |
