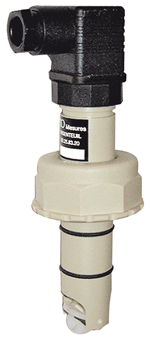

BAMOFLU 100, Flowsensor
- Wetted parts: PPH - PVDF – Stainless steel
- Speed flow range: 0.8 to 10 m/s
- Power supply: 24 V DC
- No pressure drop
- Fittings:
PVC - PPH – PVDF Tees
Stainless steel weld-on adaptors
Collars
- Output: square pulses
- Loaded fluids: particles < 2%
- From DN 15 to DN 600
|
The flowing fluid maintains in rotation the five blades rotor. Each blade has a built-in magnet, not in contact with the fluid. The magnetic field variation induces a pulsating signal with its frequency proportional to the fluid speed.
Our sensor emits a signal frequency about 38 to 45 Hz/m/s (depending of process parameters).
This measurement method assures an excellent response with flow velocity (the minimal flow velocity is 0.8 m/s). The flow could be loaded up to 2% of non magnetic particles. The fluid viscosity value should be between 0.5 to
20 cSt at process temperature, otherwise a calibration on site is necessary.
Flow sensor and installation fittings are available for pipes from DN 15 to DN 600, in stainless steel, PVC, PPH and PVDF.
Te fittings are available from DN 15 to DN 50, and collars from DN 40 to DN100.
Weld on adaptors in stainless steel are convenient from DN 50 to DN 600; same figures for glued or polyfusion adaptors proposed in PVC, PPH and PVDF.
The sensor works in any position and on both flow directions.
It is necessary to respect pipe straight lengths upstream and downstream in order to avoid turbulences.
Output frequency: 38 to 45 Hz (depends of process)
Square signal 5 to 24 V DC
Power supply: 24 V DC - 30 mA
Sensor protection against reversed polarity
Speed flow range: 0.8 to 10 m/s
Accuracy: ±1% full scale
Repeatability: ±0.5 %
Linearity: ±1 %
Maximal pressure:
10 bar at 20°C / PPH, PVDF
25 bar / Stainless steel
Maximal temperature:
85°C / PPH
100°C PVDF, Stainless steel 316 L
Body sensor: PPH – PVDF – Stainless steel 316 L
Rotor: 5 blades in E-CTFE (Halar)
Rotor bearings: Ceramic (AL2O3)
Sealing: O-ring FPM on standard – EPDM on request
Wiring: With DIN 43650 plug - IP65
|
 |
|
