Temperature sensors Pt100
Temperature sensors Pt100
General information
Temperature sensors Pt100

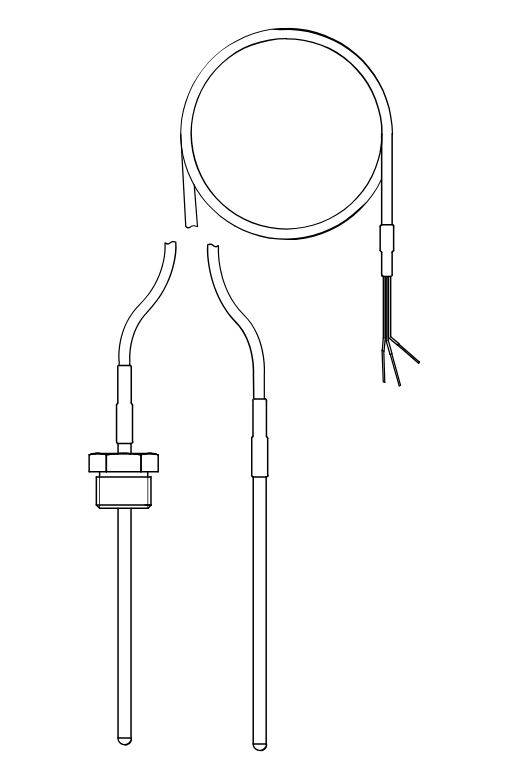

Pt 100 probes Cable outlet
PRINCIPLE

The measuring principle of resistance temperature detectors (RTDs) is based on the variation of electrical resistance in metal wires as a function of temperature. Platinum offers excellent linearity, accuracy, stability, and reliability, with the added advantage of being drawable into very fine wires. For this reason, the platinum resistance sensor—designated as Pt—is widely used in industrial environments.

DESCRIPTION

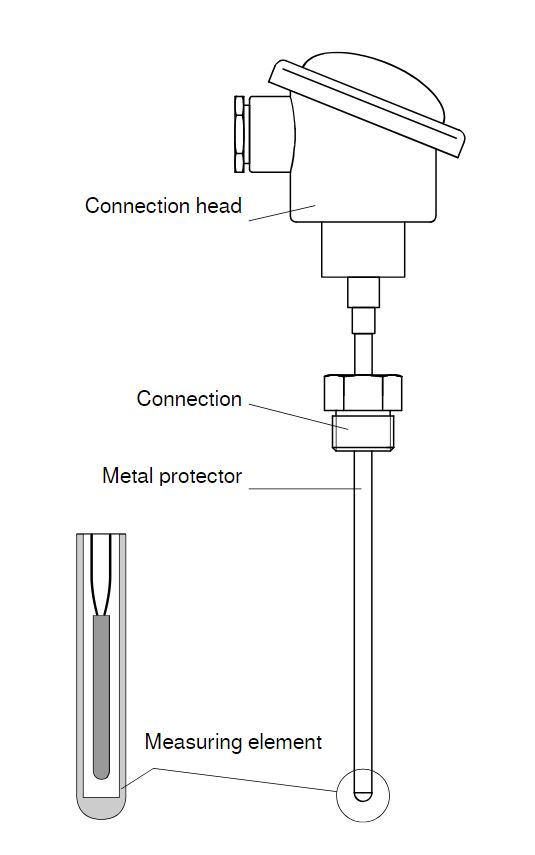

A Pt100 temperature probe is a mechanical assembly consisting of a sensing element, a conductor wire, and a wire termination (either on a terminal block or connector). This assembly is housed within a protective or mounting support to form the complete sensor.

Various configurations are available depending on needs and applications: stainless steel, plastic support, etc.
Connections can be made via: standard heads, DIN connectors, miniature connectors, etc.

• The Pt100 element (the most commonly used) has a resistance of 100 Ω at 0°C.
• The Pt500 sensor has a resistance of 500 Ω at 0 °C.
• At 100 °C, the corresponding resistance is 138.51 Ω.

STANDARD & ACCURACY CLASSES

The international standard IEC 751, derived from DIN 43 760, defines the nominal values and permissible deviations for platinum resistance sensors. The resistance tables are based on a value of 100 Ω at 0 °C, hence the designation Pt100 for a platinum sensor with this nominal resistance. At 100°C the resistance is 138.51Ω.

The standard defines two accuracy classes:

- Class B tolerance: ±(0.30 + 0.005 × |t|) from –200 °C to +850 °C
- Class A tolerance: ±(0.15 + 0.002 × |t|) from –200 °C to +600 °C

(where |t| is the absolute value of temperature in °C)

Class A provides approximately twice the accuracy of Class B. In general, Class B is used for industrial applications, while Class A is intended for laboratory use. Even tighter tolerances are sometimes used, such as 1/3 Class B, also referred to as 1/3 DIN.

Excerpt from the correspondence table according to IEC 751 standard, Amendment 2 of 1995 (based on E.I.T. 90):



      Tolerance
Class B
Tolerance
Class A
T °C Rt Ω Temp.coef. Ω/°C T °C Rt Ω T °C Rt Ω
-200 18.52 0.44 ± 1.3 ± 0.56 ± 0.55 ± 0.24
-100 60.26 0.41 ± 0.8 ± 0.32 ± 0.35 ± 0.14
0 100.00 0.39 ± 0.3 ± 0.12 ± 0.15 ± 0.06
100 138.51 0.38 ± 0.8 ± 0.30 ± 0.35 ± 0.13
200 175.86 0.37 ± 1.3 ± 0.48 ± 0.55 ± 0.20
300 212.05 0.35 ± 1.8 ± 0.64 ± 0.75 ± 0.27
400 247.09 0.34 ± 2.3 ± 0.79 ± 0.95 ± 0.33
500 280.98 0.33 ± 2.8 ± 0.93 ± 1.15 ± 0.38
