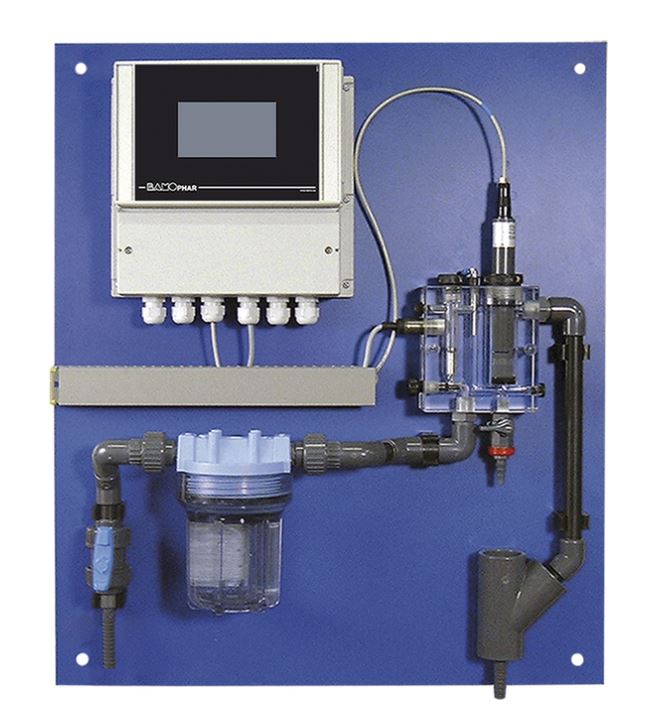

 Complete measuring system (assembly sold separately) |
| Measured parameter | Peracetic acid | |
| Applications | Disinfection in food industry (e.g.: Bottles cleaning, CIP); Industrial water, sea water Surfactants are not tolerated |
|
| Measuring system | Closed cell with 2 electrodes and electrolyte | |
| Supply voltage | 12 ... 30 V DC (Load from 500 to 900 Ω) | |
| Output signal | 4...20 mA, 2-pole terminal block (2x1mm²) No galvanic insulation |
|
| Operating temperature | 1 to 45 °C Automatic temperature compensation |
|
| Operating pressure | 0.5 bar max (without vibration and/or pulsation) Option: 1 bar max. with safety ring (on request) |
|
| Flow-rate | About 15 to 30 l/h | |
| pH operating range | Between pH 1 and pH 6 | |
| Calibration | Only 1 point with BAMOPHAR 194 | |
| Interferences | O₃ is measured with a factor of 2500 ClO₂ is measured, equivalent by a factor 1 H₂O₂ is measured, equivalent by a factor 0.005 Sulfuric and nitric acids do not interfere if their concentrations are below 1% |
|
| Materials | PVC-U and AISI 316 Ti (1.4571) | |
| Dimensions | Dia 25 mm, length 220 mm (4-20mA) |
CE conformity: The device complies with the legal requirements of current
European Directives.
