V 102
V 102

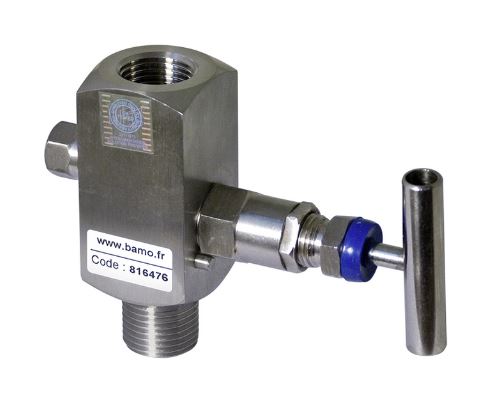

Needle valve
V 102

  • Made from metal bar stock
  • Operating pressure: 413 bar Max.
  • Temperature: 240 °C Max.
APPLICATIONS

Designed for direct mounting on pipe for liquid, gas or steam, this shut-off valve can be used to isolate a pressure gauge.

TECHNICAL FEATURES

Wet parts

Body   AISI 316
Stem thread   AISI 316
Needle   AISI 316
Sealing   PTFE (200 °C Max.)



Fittings

Gauge side   ½" BSP-F
Process side   ½" BSP-M
Drain plug   ¼" NPT - F

Options   Degreasing for application with oxygen



EC Conformity: The instrument meets the legal requirements of the current
European Directives
