 MUDSonic MF |
 MUDSonic TS |
- Sludge discharge control
- Monitoring of sedimentation processes
- Sludge level monitoring in e.g.:
Thickeners
Primary clarifiers
Industrial processes (iron hydroxide sludge, high-density sludge, etc.)

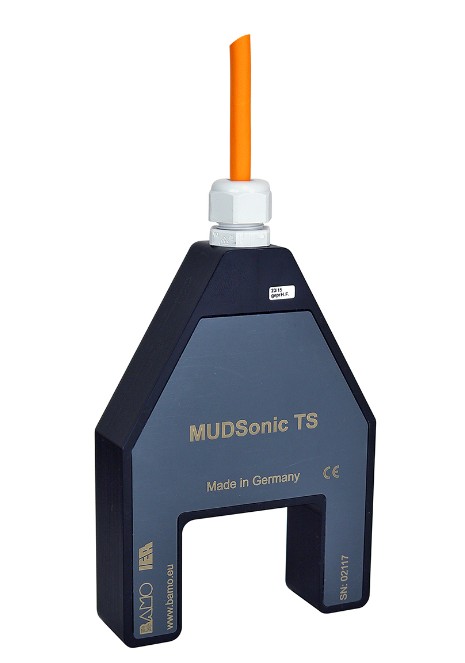

The MUDSonic sludge level monitoring system consists of the MUDSonic MF control unit combined with the MUDSonic TS immersion probe.
Measurement is based on the principle of ultrasonic absorption.
The probe detects the solids concentration in the medium using multiple ultrasonic signals.
The immersion probe is installed at a defined height in the medium and switches a limit value when the selected sludge density is reached.
The switching point and any required delay time are set on the control unit.

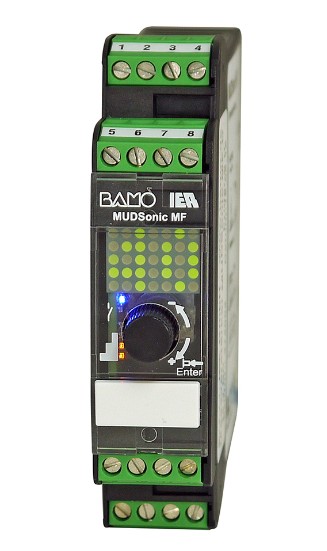

| Control Unit MUDSonic MF | ||
| Supply voltage: | 100...255 V AC / 50...60 Hz (MUDSonic MF G) or 10...30 V DC and 12...24 V AC (MUDSonic MF D) |
|
| Power consumption; | 1 ... 5 W | |
| Ambient temperature: | -10 … +45 °C | |
| Output relays: | 2 x potential-free limit contacts (NO) (limit exceeded / limit undershot) 1 x potential-free fault contact (NO) |
|
| When supply voltage is switched off, all contacts are open | ||
| Switching capacity: | 250 V AC, 3 A / 30 V DC, 1 A | |
| Note: Contacts are not protected against overload! External protection must be provided |
||
| Housing dimensions: | 22.5 x 100 x 122 mm | |
| DIN Rail: | 35 x 7.5 mm (DIN EN 60715) | |
| Protection rating: | IP 40 | |
| Connections: | Screw terminals, max. 1.5 mm² | |
