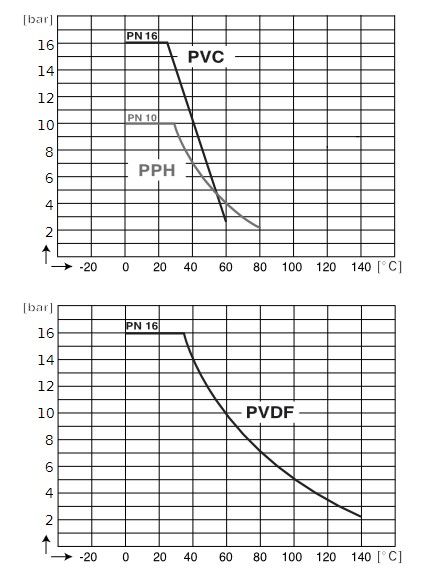

Pressure vs. Temperature |

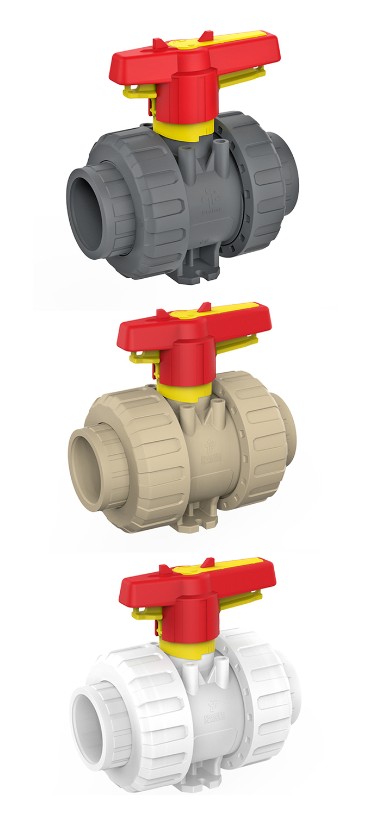

The material combinations available for the M1 series 2-way ball valves (or spherical plug valves) allow them to be used in industrial or chemical applications.

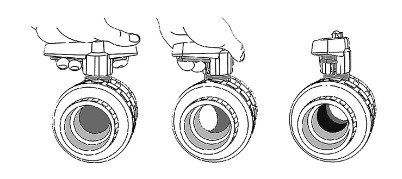

The ball seat made of PTFE allows a long operating time. A secured and lockable handle prevents of any accidental operation. These modular valves, can receive limit switches, or even supporting adapters to mount electric or pneumatic actuator.
 |
| Body | PVC-U or PP-H or PVDF | |
| Sealing | Seals in EPDM or FPM | |
| Ball | Same material as the body | |
| Ball seat | PTFE | |
| Fittings | Unions (female) PVC, PPH or PVDF Other types or materials on request |
Accessories:
- Supporting adapters, 2 models:
- Adapter to mount an electric or pneumatic actuator.
- Adapter for limit switches
EC Conformity: The instrument meets the legal requirements of the current
European Directives
