 Model with UT type actuator |

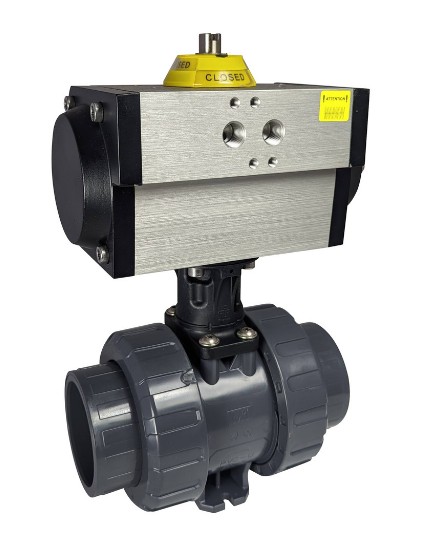

 Model with MT type actuator |
These valves are suitable for industrial applications.
2-way ball valves, controlled by a single-acting NC or NO pneumatic actuator, or double-acting, are used to control the flow of fluid in a system. Thanks to their PTFE seat, these valves have a long service life.
Modular in design, they can be equipped with various accessories for pneumatic actuators, such as the “limit switch” box, solenoid valve, silencer, and exhaust brake.
2-way ball valves:
| Body | PVC-U, PPH, or PVDF | |
| Seals | EPDM or FPM (With PVDF body: FPM seals only) |
|
| Ball | Material identical to the valve body | |
| Ball seat | PTFE | |
| Fittings | Female unions (socket-ends), | |
| Option | Mounting bracket for fixing/raising (Availability: For valves DN 10 to DN 50) |

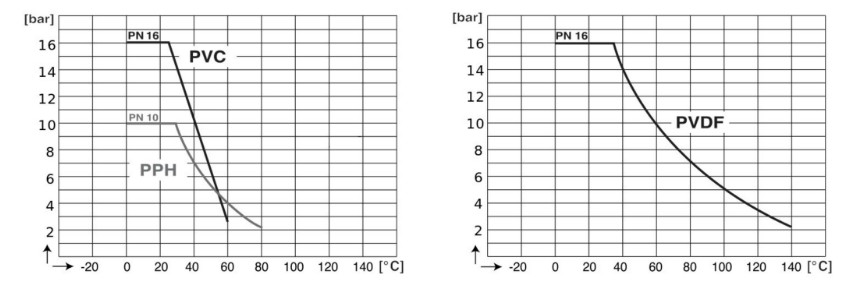

Diagram: Pressure/Temperature |
Pneumatic actuators
| Models | Single acting (N.O. or N.C.) versions, or double acting version “UT” version in technopolymer or “MT” version in metal |
|
| Operating pressure | Min. 6 bar; Max. 8 bar | |
| Fiitings | BSP 1/4'' G female | |
| Conformity | NAMUR VDI/VDE 3845 and ISO 5211 |
Accessories:
(Refer to documentation 913-10)
- Limit switches box
- 3/2-way or 5/2-way solenoid valve
- Exhaust silencer
- Exhaust damper
EC Conformity: The instrument meets the legal requirements of the current
European Directives.
