- For level monitoring in lifting and pumping systems in hazardous areas (ATEX) as "simple electrical equipment" in accordance with EN 60079-11
DESCRIPTION
The integrated switch is activated when the fill level increases. The built-in tipping weight guarantees that the float remains in place and does not float up. The NIVOSTOP PR2-EX remains in the fluid and switches even in the tightest of spaces.

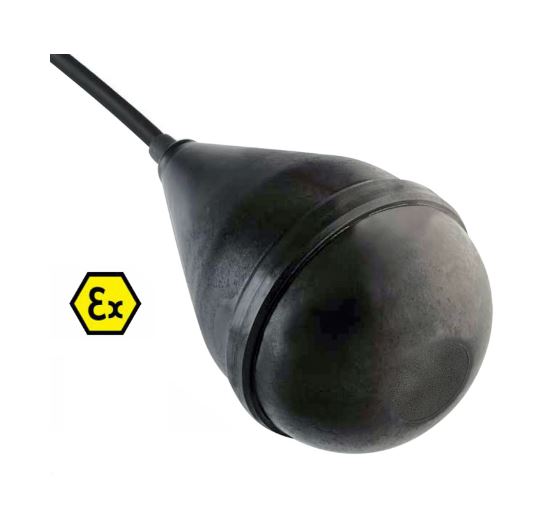

The NIVOSTOP PR2-EX is a robust float switch with a sturdy neoprene cable, even for harsh operating conditions.
The plastics used dissipate electrostatic charges via the cables earth conductor.
Important: For use in ATEX-zones 0, 1 or 2, the use of an intrinsically safe safety barrier is mandatory (e.g. RAC 531 B or RDN11, see accessories).
TECHNICAL DATA
Pressure limit
max. 2 bar
Protection
IP68
Class of equipment
I
Operating temperature
-20 ... +80 °C
Density range of liquids
0.95 ... 1.05 kg/dm³
Switching angle
20°
Switch type
Micro-switch (changeover)
Ex-maximum values
Ui= 30V, Ii= 0.1A, Pi= 0.75W
Inductance Li, capacity Ci
insignificant small
Cable
H05RN-F 4x0.75 – Ø 8,8 mm Cable lengths: 10 or 20 meters
Sealing cable entry
EPDM
Body
Antistatic PP (black) with 2 air-filled chambers
Maximum immersion depth
20m (max.)
EU Type Examination Certificate
0425 ATEX 003942-02
Ex marking
II 1G Ex ia IIC T6/T5 Ga
CE mark: The device fulfils the legal requirements of the applicable EU-guidelines
General Catalog 521-04 11/09/2025 13:02
ATEX Float Switch NIVOSTOP PR2/ Ex
