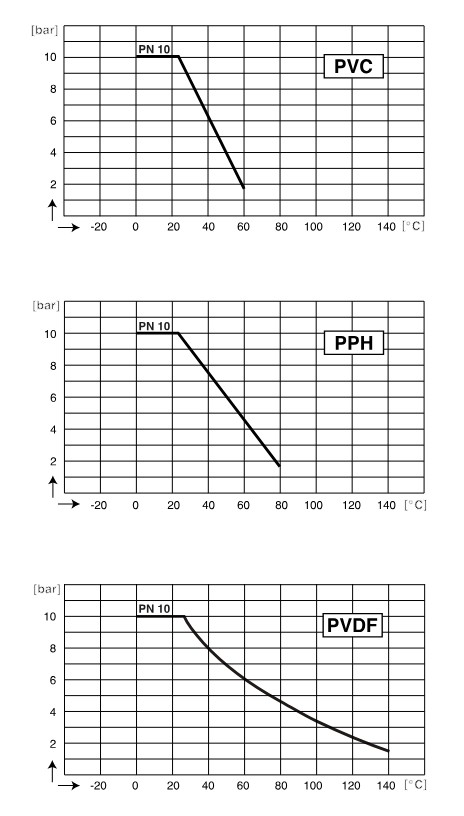

 Pressure vs. Temperature |
Diaphragm valves T4, manual type, can be used in the most demanding applications. The different materials available allow the use with many chemicals, corrosives, in pipings for aggressive and/ or polluted liquids The replacement of the diaphragm and wet seals is done without special tools.

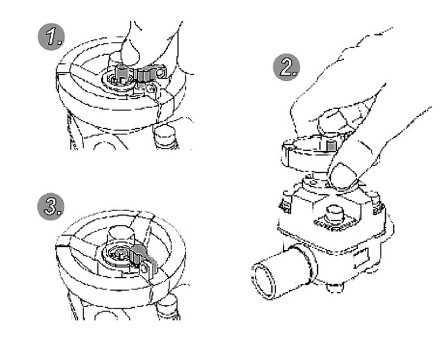

These valves are equipped with a secure and padlockable handwheel.
 |
| Body | PVC PPH |
|
| Seals | EPDM or FPM | |
| Diaphragm | EPDM or EPDM PTFE coated | |
| Seat | PTFE | |
| Fittings | Female unions (socket ends) or ends to be glued |

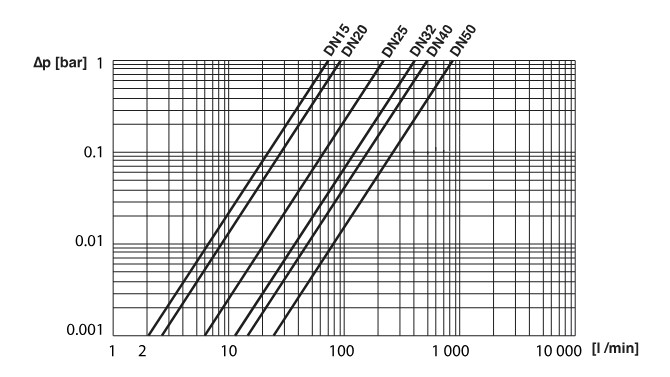

 Perte de pression / Débit (à 20 °C) |
EC Conformity: The instrument meets the legal requirements of the current
European Directives.
