NIVOSTOP ACS can be used for drinking water and food applications (water towers, aqueducts, drinking water fountains, beverages and food products, aquariums, fish tanks, etc.).
DESCRIPTION

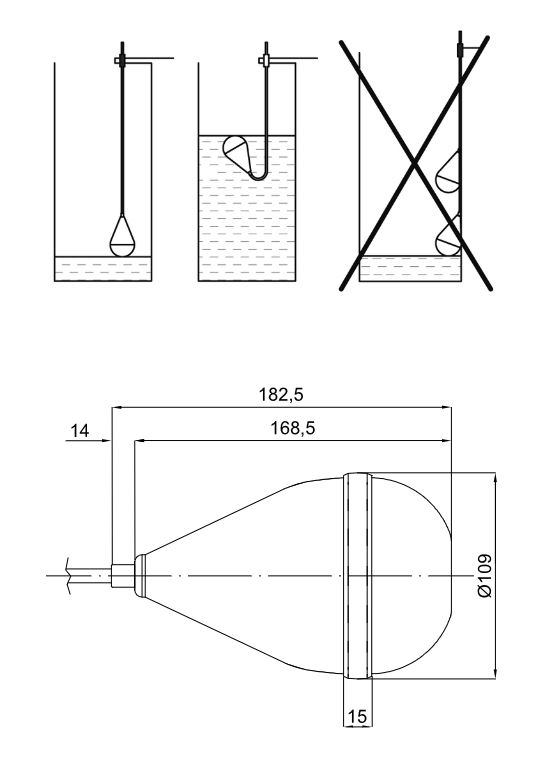

The operating principle of the NIVOSTOP ACS remains identical to that of the other products in the NIVOSTOP® range with integrated ballast.
Under the thrust of the fluid, tilting the float activates a contact connected to a control panel. Its built-in ballast prevents it from rising to the surface or wrapping itself around nearby objects. The detector therefore remains submerged and operates in a very small space.
This model features a large-diameter cable and a reinforced sealing system (three shells) for maximum durability and reliability in rough environmental conditions.
Coating made from non-toxic materials, suitable for use in the food & beverage industry and permanent use in drinking water.
TECHNICAL FEATURES
Permissible pressure
Max. 2 bar (20-meter immersion)
Protection rate
IP 68
Temperature
Up to +40°C
Admissible density
0,95...1,05
Switching angle
20°
Contact type
Changeover microswitch
Breaking capacity
0.2 to 10A (resistive load) 0.2 to 8A (motor load) - 250 V AC
Cable
ACS + AD8 3X1 - Ø 8.8mm (2 functions)
Cable gland
MEGOL™ TPS-SEBS
CE conformity: The device complies with the legal requirements of current European Directives.
