Low-cost solution for conductivity measurement and transmission to a controller.
DESCRIPTION
The BAMOCOP 336, a conductivity transmitter without display, is designed for convenient installation on a DIN rail. It converts conductivity measurements into standard analog signals of 4-20 mA, 0-5 V, or 0-10 V. It therefore offers great flexibility for a wide range of applications. Thanks to its easy configuration, it is compatible with a wide range of probes with a coefficient of 1, 0.1, or 0.01.
For temperature compensation, the transmitter is equipped with a CTN input and uses a reference curve at 25°C. Automatic temperature compensation is performed within a range of 0 to 100 °C.

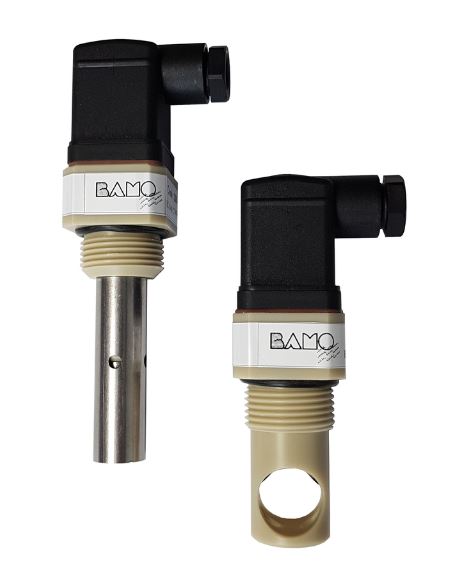

BC-type conductivity probes, equipped with integrated CTNs, are designed for use with the BAMOCOP 336 transmitter. Together, the BAMOCOP 336 and BC probes enable conductivity measurements across a wide range, making them the ideal choice for your conductivity measurement needs.
TECHNICAL FEATURES
Conductivity transmitter:
Measurement input
2 μS.cm⁻¹...20mS.cm⁻¹
Power supply
24 V DC +/- 10% regulated (standard) 12 V DC +/- 10% regulated (Option)
Output
0(4)...20 mA / 0...5 / 10 V Refer to the transmitter nameplate
Consumption
max. 50 mA
Ambient temperature
0...60 °C
Accuracy/Linearity
+/-1 % -2 % at 20 mS.cm⁻¹
Temperature input
CTN
Reference temperature
25 °C
Protection rating
IP20
Dimensions
75 x 60 x 30 mm (P x H x l)
Weight
70 g
Combination of achievable measuring ranges according to probe coefficient:
Cell coefficient
Jumper 1
Jumper 2
Jumper 3
1
20 mS.cm⁻¹
2 mS.cm⁻¹
200 μS.cm⁻¹
0.1
-
200 μS.cm⁻¹
20 μS.cm⁻¹
0.01
-
20 μS.cm⁻¹
2 μS.cm⁻¹
General Catalog 336-02 05/06/2025 16:33
Conductivity transmitter and probe BAMOCOP 336
