General Catalog 774-01
BAMOFLO MAG 774
BAMOFLO MAG 774
Electromagnetic flowmeter
BAMOFLO MAG 774

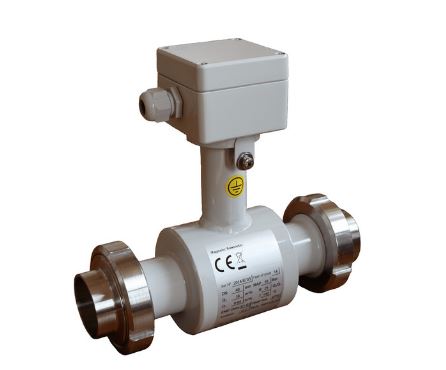

Sanitary version

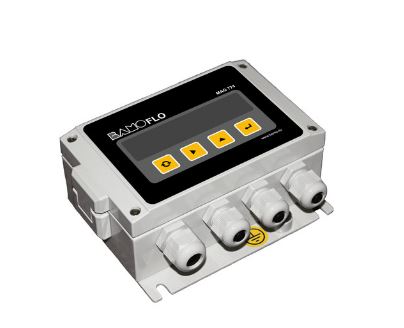

Converter: Remote version
  • Display with backlit keyboard
  • From DN10 to DN1000
  • Versions: Compact or remote converter
  • Connections: flanges, threads, wafer and sanitary fittings
  • Modular design with many additional options (MODBUS, HART, GSM)
  • Approval for drinking water ( PZH )
DESCRIPTION

Electromagnetic flowmeters are designed to measure the flow of a liquid with minimal electrical conductivity of 5 μS/cm.
The selection of the appropriate device: size, material or available options depends on the type of liquid being measured, its temperature and the specifications of operation.

The sensor has built-in electrodes that measure the flow on the principle of Faraday's cage. The signal coming from electrodes is sent to the converter placed on the flowmeter or to the remote converter (e.g. : on the wall).
Converter changes and amplifies the signal, displays measurement results and can receive additional modules, e.g. 4-20 mA output, relay or GSM module.

TECHNICAL FEATURES

Sensor

Connection size   DN 10 to DN 1000
Connection type   Flanges, thread, wafer, sanitary fittings
Number of electrodes   2 to 4 (fourth electrode for empty pipe detection)
Electrode material   AISI 316 Ti, Hastelloy C, Titanium, Tantalum, Platinum
Body material   Carbon steel, painted
Lining material   Soft or hard rubber, PTFE
Liquid temperature   0to 150 °C
Accuracy   < 0.5 %
Nominal pressure   PN6, PN10, PN16, PN25, (PN40, PN64 - on request)
Protection   IP67 ( IP68 optional )

Converter

Power supply   85...240 V AC, 10...36 V DC, 24 V AC
Consumption   5...8 VA
Display   LCD 2x16 characters (9,6 mm high) and keyboard
Protection   IP67
Output signal   0-20 mA, 4-20 mA (active/passive), 0-1 kHz, 0-10 kHz, 0-12 kHz, relays - galvanically isolated
Cable length (remote version)   Standard 6 m, up to 100 m max.
Additional modules   RS 232, RS 485 (MODBUS), HART, GSM modem, electrochemical electrode cleaning module



General Catalog 774-01
24/09/2025 10:38
Electromagnetic flowmeter
BAMOFLO MAG 774
