- General building authority approval of the DIBt: Z-65.40-272
- Vlarem II (Corcon bvba) Prototype certificate no.: CP0724/4071-HCC001
Leak detector probe in accordance with the Water Resources Act (WHG) for installations used to store, fill, and handle water-hazardous liquids.

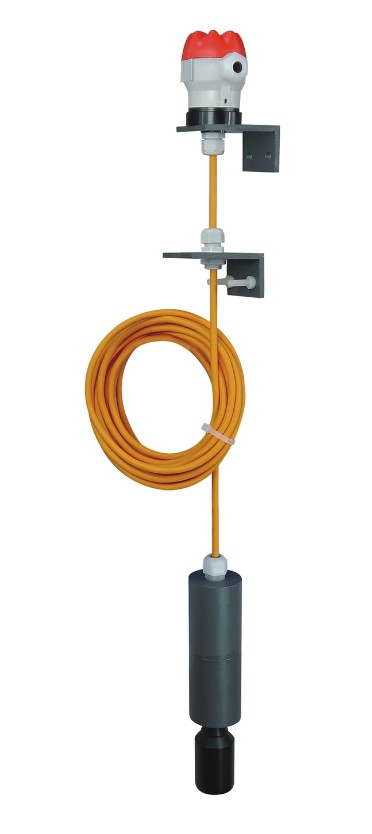

The MAXIMAT compact leak detector probes are designed to signal leaks in tanks containing water-hazardous liquids. When the float rises in a liquid, the integrated electronics respond and output a signal.
This signal is suitable for interrupting the filling process in due time before the permissible fill level is reached and for triggering audible and visual alarms.
An alarm is triggered at the latest at an immersion depth of 50 mm (depending on the liquid density).
| Operating principle | Float, magnetic with reed contact | |
| Connection head | PBT, glass fibre reinforced | |
| Protection class | IP65 | |
| Installation | PVC cap Ø 63 or mounting bracket, each with Pg9 cable gland/adjustable screw union | |
| Materials (wetted parts) | PVC, PP, or PE-HD (standard) | |
| Probe cable | TPK cable 2x0.34mm² shielded, L= 6m | |
| Operating temperature | -20...+60°C | |
| Operating pressure | atmospheric, 0,8...1,1 bar | |
| Hysteresis | approx. 2mm | |
| Measuring circuit | for connection to transmitter MAXIMAT SHR C... | |
| Measuring voltage | approx. 12V DC |
CE marking: The device meets the legal requirements of the applicable EU
Directives.
