Compatible with our counterweights and floats:
- Remote alarm signals: Rising or drop of liquid level
- Pump automation with 2 BRK and 1 Relay ES 2001
These devices must not be used on vibrating machines or where there is a risk of shocks or vibrations.

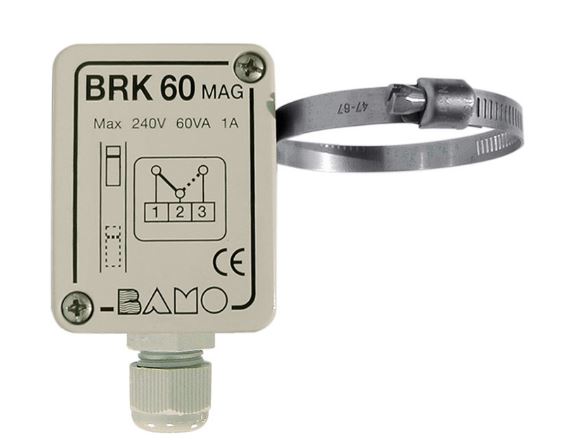

A Float or a counterweight with a built-in magnet, drives a Reed contact integrated to a PCB inside a casing in ABS, IP55. Electric connections are on screw connectors.

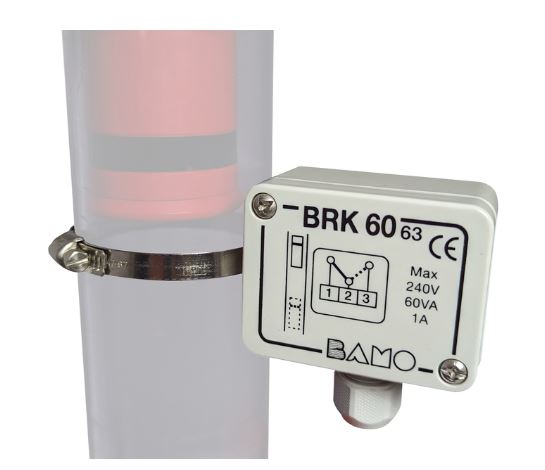

In addition to the counterweights or floats in the BAMO range, the contact can be attached to Ø 32, Ø 40 and Ø 63 level indicator tubes using the stainless steel collar. See the table Codes & references for compatibilities with actuators.

The contact is bi-stable, change-over with a switching capacity of 60 VA. The contact remains in position after the actuator (float or counterweight) passes in front of the BRK/ BRT. The contact returns to its original position only when the actuator passes back in the other direction.

Accessories: Relay ES 2001 (data-sheet 250-01)
- Relay ES 2001 increases the switching power of equipment.
- Pump or valve for filling or draining with 2 level contacts BRK plus 1 relay ES 2001.

EC Conformity: The instrument meets the legal requirements of the current
European Directives
