CD7
CD7

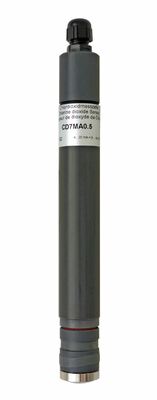

Chlorine dioxide sensor
CD7

  • For swimming pool, drinkable water, cooling and process water
  • Range: from 0.01 up to 10 ppm
  • Output signal: 4-20 mA
  • Sensor affords surfactants
  • Pressure limit: 1 bar as a maximum
  • Unnecessary zero adjustment
DESCRIPTION

Principle
Chlorine dioxide measurement by amperometric method with a diaphragm cell of 3 electrodes; wasted sample.
The probe includes a CTN sensor for the temperature compensation.

Mounting / Recommendations

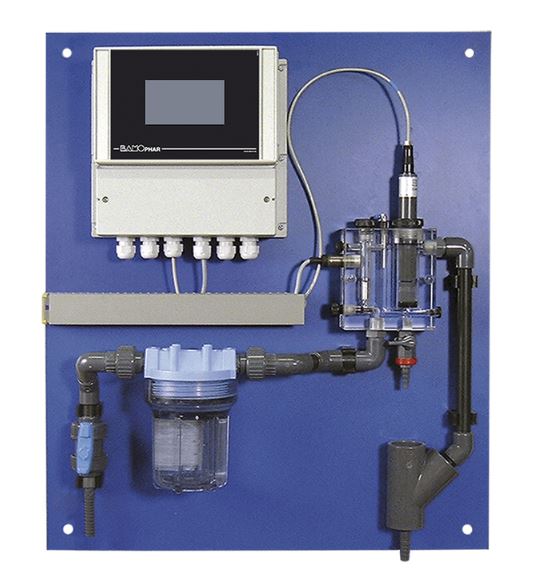

The measuring at a constant flow rate requires the use of a specific cell (see data sheet 193-95).
The complete assembly optimizes the operations.

TECHNICAL FEATURES

Range: 0.01 to 10 ppm
pH range: 2 to 12
Operating pressure: 1 bar as a maximum
Operating temperature: 1 to 45°C
Flow rate limits: 30 to 40 L/h (see doc. 193-95)
Power supply: 12...30 V DC, [Rmax = (U-7,5) / 20 kΩ]
Materials: PVC-U, electro-polished AISI 316L
Dimensions: Ø 25 mm, length 225 mm

General Catalog 193-11
09/04/2018 17:27
Chlorine dioxide sensor
CD7
