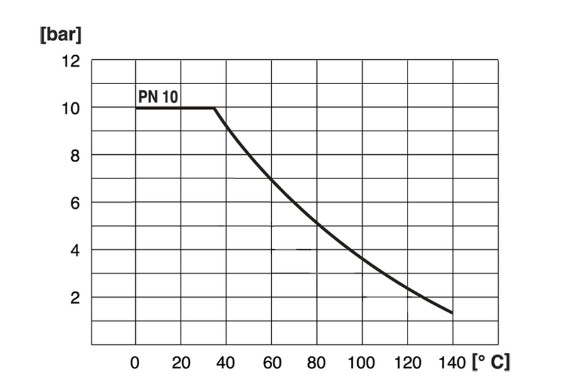

 Pressure vs. Temperature |

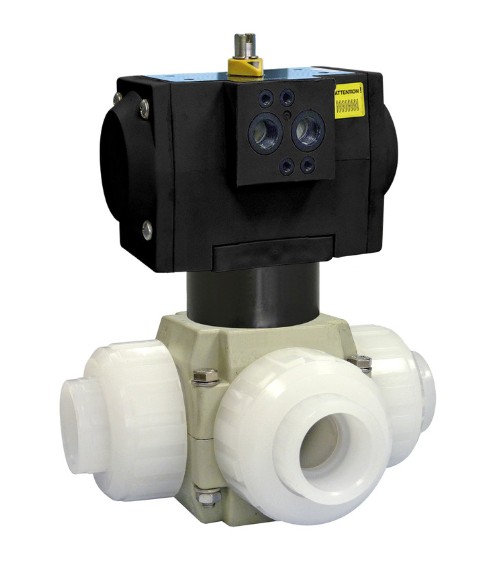

These 3-way ball valves in L or T configuration, operated by a single-acting (normally open or normally closed) or double-acting pneumatic actuator, offer multiple possibilities for controlling the direction of fluid flow within an installation.
These valves are suitable for use in aggressive environments. Their different operating modes are described in document D–913.20.
| 3-way ball valve: | ||
| Body | PVDF | |
| Seal | FPM | |
| Ball | PVDF | |
| Ball seat | PTFE | |
| Connection | union (female ends for welding or socket fusion) | |
| Maximum pressure | 10 bar | |
| Pneumatic actuator | ||
| Models | single acting (NO or NC) – double acting | |
| Operating pressure | min. 6 bar, max. 8 bar | |
| Connection | ¼" G | |
| Accessories mounting | NAMUR VDI/VDE 3845 and ISO 5211 | |
| Materials: | ||
| Housing | technopolymer (black color) | |
| Pinion | nickel-plated carbon steel | |
| Fasteners | epoxy-coated cast aluminium | |
| Pistons | stainless steel AISI 304 | |
| Seal | BUNA-N | |
Accessories:
(See document D–913.10)
- Limit switch box
- 3/2 way solenoid valve (for single-acting version)
- 5/2 way solenoid valve (for double-acting version)
- Exhaust silencer , Brass, BSP 1/4''
EC Conformity: The instrument meets the legal requirements of the
currentEuropean Directives
