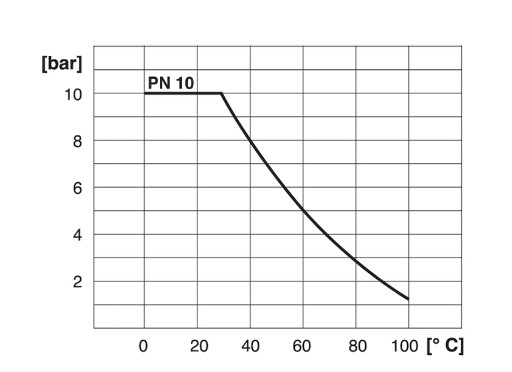

 Pression / Température |

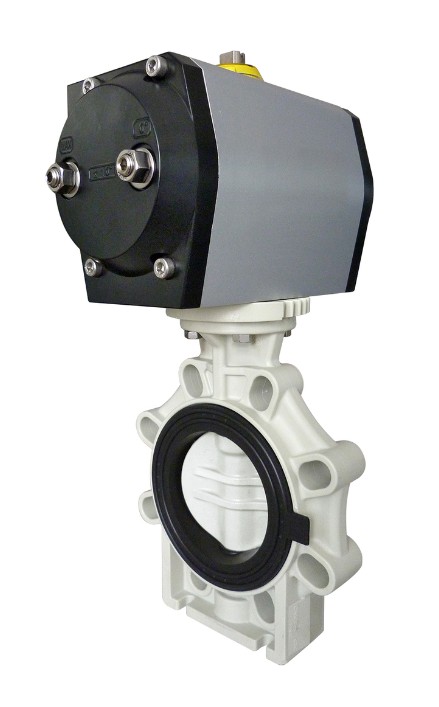

These butterfly valves, equipped with a single-acting pneumatic actuator (normally closed or normally open) or double-acting, control the flow of fluid in an installation.
Only the sealing sleeve and the disc are exposed to the fluid. They are specifically designed for use in aggressive environments.
| Butterfly valve | ||
| Body | PP-GF | |
| Seals and sleeve | FPM | |
| Disc | PVDF | |
| Connection | wafer type (between flanges) | |
| Pneumatic actuator | ||
| Models | single acting (NO or NC), or double acting | |
| Operating pressure | min. 6 bar, max. 8 bar | |
| Connection | ¼" G | |
| Main material | Technopolymer: “UT” model Aluminium: “MT” version See code and reference table |
|
| Compliance: NAMUR VDI/VDE 3845 and ISO 5211 | ||
Accessories:
(See document D-913.10)
- Limit switch box
- 3/2 way solenoid valve (for single acting version)
- 5/2 way solenoid valve (for double acting version)
EC Conformity: The instrument meets the legal requirements of the current
European Directives
