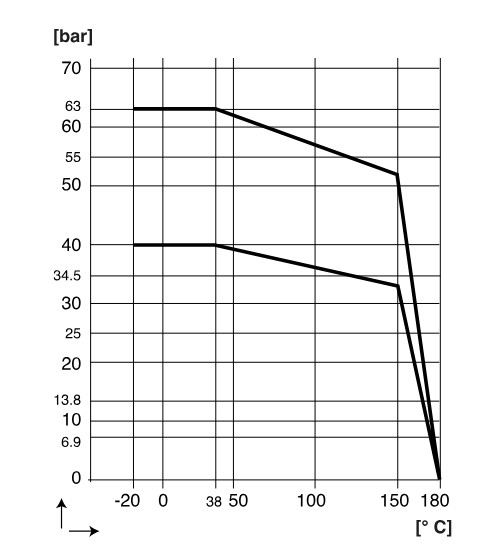

 Pressure vs. Temperature |
The 2-way ball valves controlled by electric actuator, once closed, to isolate a part of a piping system. Open, they do not cause a pressure drop in the pipeline. Quick operation: The 90° are covered in about 10 seconds. These valves are suitable for applications with aggressive liquids, have a manual operating for emergency and a position pointer. The motor must be turned off when using the manual override.
2-way ball valve:
| Body | AISI 316 | |
| Seal | PTFE/FPM | |
| Ball | AISI 316 | |
| Ball seat | PTFE + 15% fiberglass | |
| Fittings | BSPF | |
| Pressure limits | 63 bar → ND 10 to ND 20 40 bar → ND 25 to ND 50 |
|
| Operating temperature | -20 ... +100°C ( Up to 180 °C: On request Over 100 °C: On request |
Electric actuator:
| Movement | 90° | |
| Emergency operating | Manual override | |
| Duty rating | 30 % | |
| Protection | IP 65 | |
| Connections | 1 cable gland ISO M20 1 connector 3 pins + ground, DIN 43650 |
|
| Consumption | 15 W (¼“ to 2”) | |
| Multi-voltage power supplies | 100 ... 240 V AC 50/60 Hz and 100 ... 350 V DC or 24 V AC 50/60 Hz or 24 V DC |
|
| OPTIONS |
Back to 0° in case of power failure (safety) |
EC Conformity: The instrument meets the legal requirements of the current
European Directives
