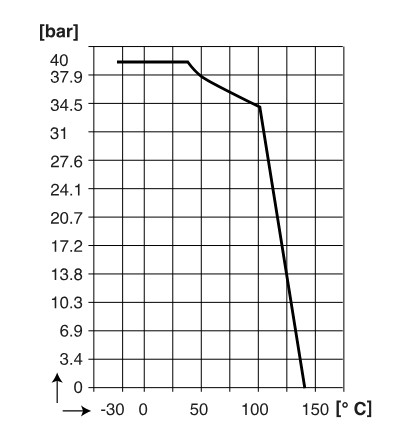

 Pressure vs. Temperature |

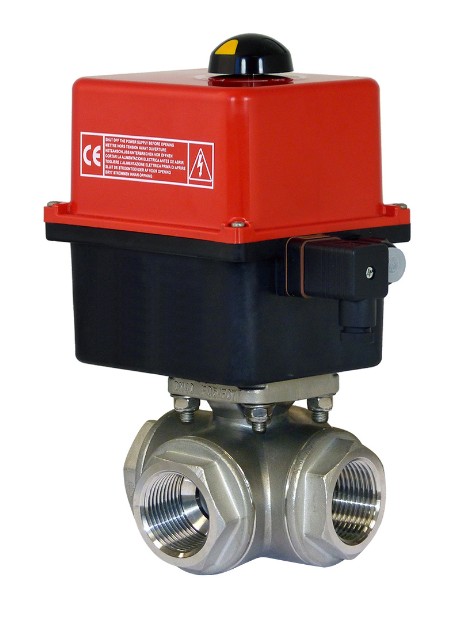

Electrically actuated 3-way ball valves are useful for redirecting or to stop the flow of liquids in piping systems. These models are designed for aggressive liquids; In standard versions they allow a manual operating for maintenance (or emergency operations) and a position pointer. The power supply must be switched off before a manual operating.
All operating modes (according bore shapes) are described in the data-sheet da913-20.
3-way Ball valves:
| Body | AISI 316 | |
| Seals | PTFE/FPM | |
| T or L bore shapes | AISI 316 | |
| Ball seat | PTFE, glass-fiber reinforced (15 %) | |
| Fittings | BSP, female threads | |
| Pressure limit | 40 bar | |
| Operating temperature | -30 ... +100 °C; up to 140 °C on request From and over 100 °C: Please request confirmation on feasibility |
Electric actuator:
| Movement | 90° | |
| Emergency override: | Manual | |
| Duty rating | 30 % | |
| Protection | IP 65 | |
| Connections | 1 Cable gland: M20 - ISO 1 connector 3 poles + ground, DIN 43650 |
|
| Consumption | ¼'' up to 1'': 15 W 1 ¼'' up to 2'': 45 W |
|
| Multi-voltage power supplies | 100 ... 240 V AC 5060 Hz and 100 ... 350 V DC or 24 V AC 50/60 Hz and 24 V DC |
|
| OPTIONS | Fail safe (back to 0° in case of power failure) Electronic positioning servo on 4-20 mA signal (or 0-20 mA, or 0-10 V) |
EC Conformity: The instrument meets the legal requirements of the current
European Directives.
