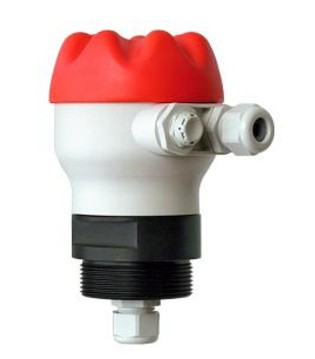

 BJSC junction box (recommended option) |
- Chemical industry
- Electroplating plants
- Waste water plants
- Neutralization process

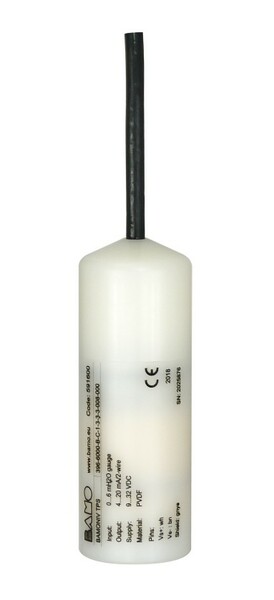

BAMONIV-TPS is designed for hydrostatic level measurement in aggressive media that is clear or slightly contaminated. Wet parts are of PVDF or PP, the seal of FPM and the cable of FEP.

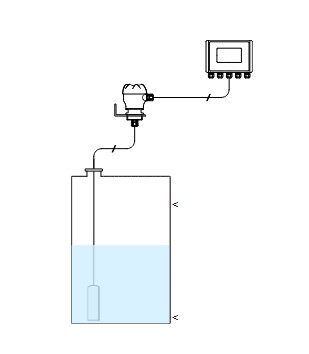

It measures the level according to the principle of hydrostatic pressure measurement. The probe is suspended with its cable, down to the tank bottom. The probe is in immersion in the liquid and delivers a 4-20 mA signal proportional to the immersion depth.
| Power supply | 9 ... 32 V DC | |
| Output signal | 4 ... 20 mA; 2-wire | |
| Current limit | 21 mA max. | |
| Load limit | Rmax. = 450 Ω | |
| Electrical protections | Against reversed polarity, short circuit | |
| Accuracy | < ± 0.35 % F.S. - According IEC 60770 | |
| Temperature limits | -10...+60 °C | |
| Temperature compensation | 0...+60°C | |
| Temperature incidence | < ± 0.1 % FS / 10 K | |
| Response time | ≤ 0.2 s | |
| Measuring cell | Ceramic AI₂O₃ 99.9 % (aluminum oxide) | |
| Measuring ranges | From 0...1 up to 0...50 m water column (See the table" Codes and references") |
|
| Body | PVDF or PP | |
| Seal | FPM (EPDM or FFPM on request) | |
| Cable | FEP (Standard) PUR TPE |
|
| Protection | IP 68 |
EC Conformity The instrument meets the legal requirements of the current
European Directives
 |
