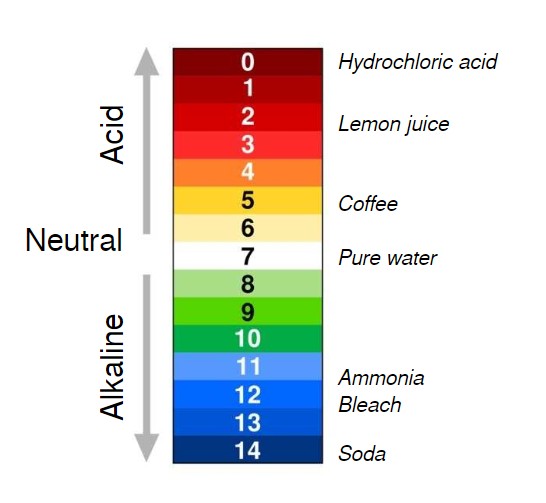

Measurement of pH or ORP, alarms and/or regulation for water treatments, chemical industries, industrial applications.

Example
- Electroplating industry
- Processed water treatment
- wastewater treatment (e.g. pH neutralization)
- Groundwater or runoff water survey
- Swimming pool pH regulation (or spa or fish tank)
- Alarming on cooling plant (NH₃)

The device is equipped with a color touch screen for the display of a multilingual menu - user friendly and intuitive. It provides easy reading of measurement, temperature and state of the thresholds. It displays a menu with all parameters for configuration of analogue outputs, thresholds and regulation mode. In order to facilitate its commissioning, a programming menu can simulate the measurement, acting on the measurement analog outputs and PID, as well as on the thresholds.

Analogue output reflects the measurement and may be scaled all along the range.
Temperature analogue output is available as well as a 4...20mA signal.

A complete measuring system includes:
- pH/mV-meter BAMOPHAR
- One pH or ORP electrode (see data sheet)
- One electrode holder (see data sheet)
- Accessories: pH/ORP cable, connectors, buffers (see data sheet)
- Option: Temperature probe (see data sheet)
For any information and special request: please contact us.

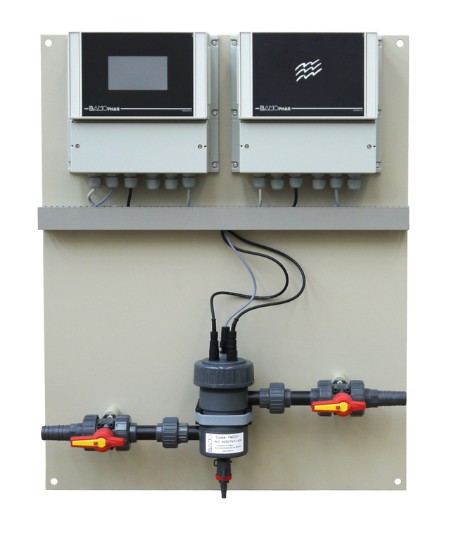

An extension terminal (wall, panel or DIN rail mounting):

• Allows a second measuring parameter (pH, flow-rate, conductivity, etc.)
Data from this blind unit are displayed on the main unit
• Connected to main unit with 4 wire shielded cable
(Cable length between both devices: max. 500m)
• RS422 and Data Logger of main unit are shared between both units
