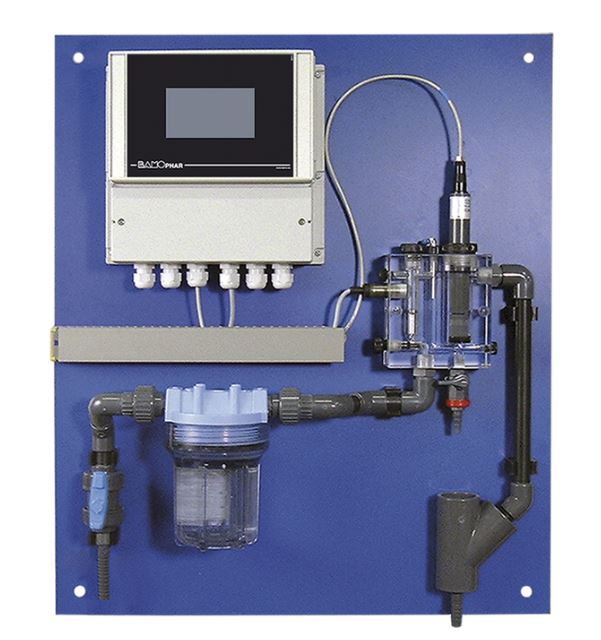

 Complete measuring system (assembly sold separately) |
| Measured parameter | Ozone | |
| Applications | Water treatment (quality of drinkable water), sea water, R.O. produced water ( >10 μS/cm ) e.g.: Bottles disinfection, CIP etc. Surfactants: tolerated |
|

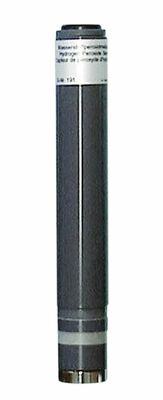

| Measuring system | Closed cell with 2 electrodes and electrolyte | |
| Supply voltage | 12 ... 30 V DC (Load: 500 to 900 Ω) | |
| Output signal | 4-20 mA, screw connector, (2x 1mm²) No galvanic insulation |
|
| Operating temperature | From 1 to 45 °C Automatic temperature compensation |
|
| Operating pressure | 0.5 bar without retaining ring 1 bar max. with retaining ring (No vibrations; No pulsating flow) |
|
| Flow-rate | About 15 to 30 l/h | |
| pH operating range | pH 4..9 | |
| Zero adjustment | Not necessary (from factory) | |
| Slope calibration | Only 1 point with BAMOPHAR 194 | |
| Calibration | DPD-4 method (DPD-1 + DPD-3) and record results on the BAMOPHAR 194 in the CALIBRATION menu. | |
| Materials | PVC-U and AISI 316 Ti (1.4571) | |
| Protection rate | IP65 | |
| Dimensions | O.D. 25 mm, length 220 mm (4-20 mA) |
EC Conformity: The instrument meets the legal requirements of the current
European Directives
