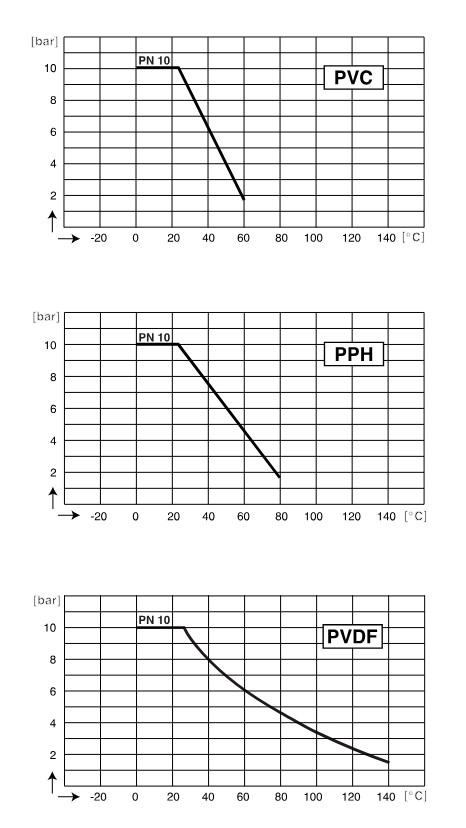

 Temperature / Pressure |
T7 manual valves can be used in flow control applications. The various materials available enable them to withstand many chemicals and corrosive substances.
These valves are equipped with a secure, lockable handwheel and an open position indicator.
| Valve body | PVC PPH PVDF (only with FPM seal) |
|
| upper part | PP-GF | |
| Seal | EPDM or FPM | |
| Membrane | EPDM or PTFE-coated EPDM | |
| Fittings | Solvent-socket ends |
CE compliance: The device meets the legal requirements of the applicable
European directives.
| Body | PVC | PPH | PVDF | ||
| Seals | EPDM | FPM | EPDM | FPM | FPM |
| Membrane | EPDM | FPM | EPDM | FPM | PTFE |
| Codification | |||||
| DN 15 | AD 271 200 | AD 271 240 | BD 273 200 | BD 273 240 | CD 275 200 |
| DN 20 | AD 271 201 | AD 271 241 | BD 273 201 | BD 273 241 | CD 275 201 |
| DN 25 | AD 271 202 | AD 271 242 | BD 273 202 | BD 273 242 | CD 275 202 |
| DN 32 | AD 271 203 | AD 271 243 | BD 273 203 | BD 273 243 | CD 275 203 |
| DN 40 | AD 271 204 | AD 271 244 | BD 273 204 | BD 273 244 | CD 275 204 |
| DN 50 | AD 271 205 | AD 271 245 | BD 273 205 | BD 273 245 | CD 275 205 |
