3-piece ball valve for shut-off of fluids in chemical and pharmaceutical networks, petrochemical industries, hydraulic installations, and compressed air systems
Sealing is ensured by a PTFE gland packing and an FPM O-ring on the stem, as well as by seats made of 15% glass-filled PTFE.
The valve can be actuated by an actuator mounted directly on the ISO 5211 pad via the square stem.
| Body | Stainless steel ASTM A351 CF8M | |
| Ball | Stainless steel AISI 316 | |
| Control valve spindle | Blow-out proof, stainless steel 316, PTFE and FPM sealing | |
| Seat | 15% glass-filled PTFE | |
| Connection | Female/Female BSP | |

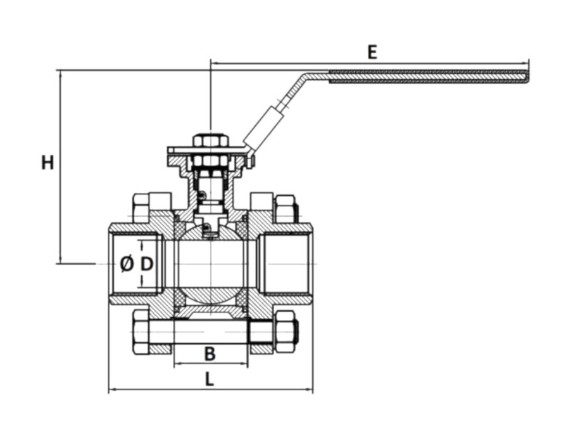

| Dimensions | DN1/4" to DN 2" | |
| Operating pressure | 63 bar up to DN3/4" 40 bar from DN 1‘ to DN 2’ |
|
| Temperature | from -20°C to +180°C | |
| Standards: | DN 1/4" to 1": Article 4, §3 (SEP), no CE marking DN 1"1/4 to 2": Risk category II, CE0038 or CE0343 marking |
